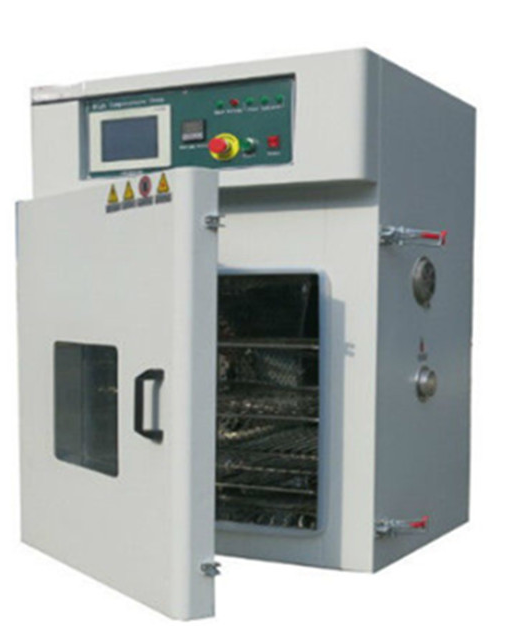

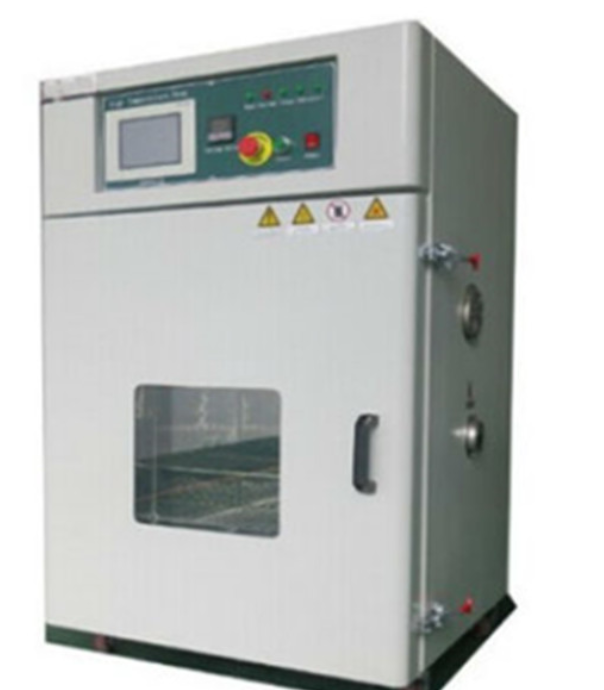

Test the material heat-resistance Ventilation aging test chamber with SUS304 mirror Stainless steel 304B TIG
Product Description:
Ventilator-Aging Test Chamber is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: Wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.
Ventilation Conversion Formula:
N=3590(X-Y)x2/VDt
N: Ventilators;
V: Capacity of case;
X: Power consumed when open the air valve
Y: Power consumed when closed
T: Temperature difference between working and environmental
features:
1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.
4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
5. Good uniformity of temperature
7. With D.50mm test holes on the left side for external test power line or signal line.
Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.
Standard:
UL1581-2006:420.9, ASTMD5423-2005, ASTMD5374-2005
| Model | BT013-45 | BT013-60 | BT013-75 |
| Internal Dimension W×H×D(mm) | 450×500×450 | 500×600×500 | 600×750×600 |
| External Dimension W×H×D(mm) | 1000×1000×700 | 1150×1200×850 | 1350×1500×1000 |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated. |
| Temperature Range | RT+10 degree ~200 degree (300 degree ) |
| Uniformity of Distribution | ±2.0 degree |
| Air Ventilation Rate | 0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour |
| Speed of Test Frame ( RPM) | 5-10 |
| Power | AC220V |
Our Services
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency | USD, EUR, HKD, CNY |
| Accepted Payment Type | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
