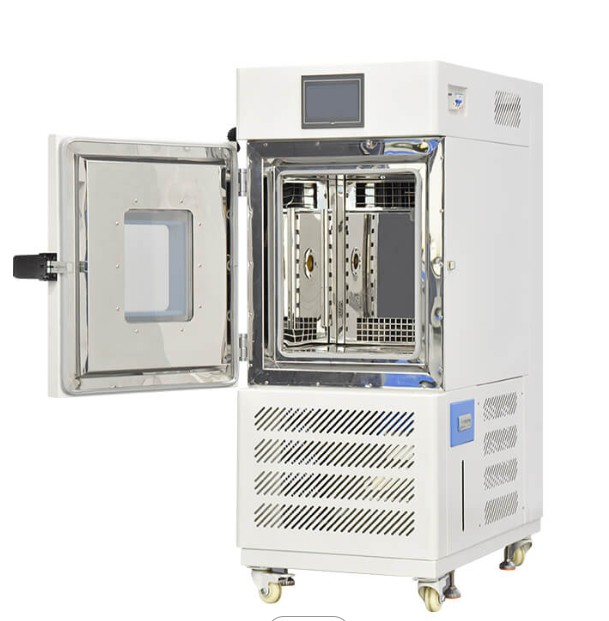

Microprocessor Controlled Test Chamber For Safe Experiments, Can Be Customized Capacity
Climatic chamber is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Summary:
It is equipped with a precise system of temperature and humidity control, which provide various necessary environmental simulative conditions for industrial researches and biotechnology tests. Widely applied in sterile tests and stability check-up of pharmaceuticals, textile and food processing as well as tests in material, performance, packing and lifetime of industrial products.
Features:
1. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning,and the space between the shelves in the chamber is adjustable.
2. Microprocessor controller for temperature and humidity ensures of precise and reliable control.
3. Independent temperature-limiting alarm system ensures experiments run safely.
4. There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
Specifications
| Model | BT-280 | BT-2150 | BT-2225 | BT-2408 | BT-2800 |
| Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 |
| Outside Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L |
| Temp and Hum Range | A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
| Function | Fluctuation | ±0.5°C ±2.5%RH |
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
| Controller Analytical Accuracy | ±0.3°C ±2.5%RH |
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation |
| Refrigeration Way | Single stage compression refrigeration |
| Refrigerator | French Tecumseh |
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) |
| Condensing Way | Air-cooled or water-cooled |
| Heater | Nickel chrome heating wire heater |
| Humidifier | Semi-closed steam and wet |
| Water Supplying Way | Automatic cycling water supply |
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
- Constant Temperature and Humidity Test Chamber
- Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
- UV Accelerated Aging Test Chamber
- Mini Environmental chamber / Desktop Environmental Test Chamber
- Walk in Constant Temperature and Humidity Lab
- High Temperature Chamber and Other Lab Test Equipment etc.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Process
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Certification

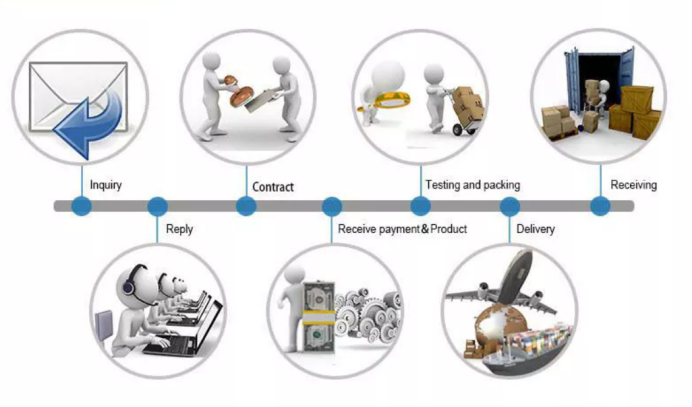

TRADING PROCESS
Cooperative partners
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
